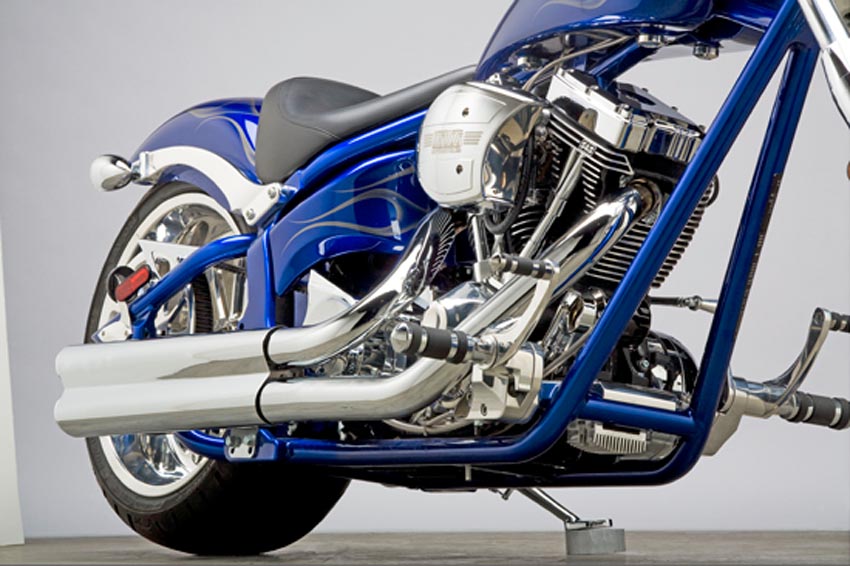

Coyote, 2010
Specifications
Factory Warranty..2 Years Manufacturer
Dry Weight - Front.261 lbs (118 kg)
Dry Weight - Rear.401 lbs (182 kg)
Dry Weight - Total.662 lbs (300 kg)
GVWR.1012 lbs (459 kg)
GAWR - Front. 345 lbs (156 kg)
GAWR - Rear. 667 lbs (303 kg
Fuel - Total...3.8 gal (14.4 L)
Fuel - Main...3.4 gal (13 L)
Fuel - Reserve...0.4 gal (1.5 L)
Oil Capacity...2.875 - 3 qts (2.7 - 2.8 L)
Frame Rake..39 degrees
Tree Rake...3 degrees
Trail...4.74" (120.3 mm)
Front Suspension...41 mm Telescopic
Fork Length...+2.0" (50.8 mm)
Seat Height...24.5" (622.3 mm)
Ground Clearance...4.5" (114.3 mm)
Wheel Base...77.5" (1969 mm)
Total Length...102.5" (2604 mm)
Front Brake...4-Piston Diff Bore
Rear Brake...4-Piston
Front Tire...MH90-21 56V
Rear Tire...250/40-R18 81V
Front Tire Pressure...40 psi (275.8 kPa)
Rear Tire Pressure...42 psi (289.5 kPa)
Front Wheel...21" x 2.15" (533.4 mm x 54.6 mm)
Rear Wheel...18" x 8.50" (457.2 mm x 215.9 mm)
Engine...OHV 45 degree V-Twin
Displacement...117 c.i. (1917 cc)
Bore x Stroke...4.125" x 4.375" (104.8 mm x 111.1 mm)
Compression Ratio...9.6:1
Fuel System...Carbureted
Transmission...6-Speed
Primary Drive...Comp/Balance Drive
Final Drive...1.125" (28.6 mm) Belt
Ignition...Electronic Single Fire
Charging Output...35 Amp
Battery...310 CCA/Sealed AGM
